PLC Training & Testing Stations

Real PLC hardware. Real I/O. Real learning.

Request a Station Spec ← Back to Products
S7-1200
& S7-1500 Available
16 DI
16 DO with LED Indication
12-Point
QA Sign-Off Per Station
PROFINET
Distributed I/O Architecture

Purpose-Built for Education

Training Station Aluminium Enclosure

Not a Demo Board. A Complete Working System.

SyncHub Automation designs and builds purpose-built PLC training and testing stations with real industrial hardware, real conveyor systems and real sensors. Students, technicians and engineers can programme, fault-find and commission these exactly the way they would on a live plant.

Every station ships with a pre-loaded programme, a commissioning checklist and full documentation. Plug in, power on, start teaching.

  • Siemens S7-1200 or S7-1500 PLC (TIA Portal)
  • Touch panel HMI — TP 170B through to 21" widescreen
  • 16 DI / 16 DO with LED indication per channel
  • ET 200 distributed I/O via PROFINET
  • Bi-directional conveyor belt with sensors
  • Fully labelled, QA-signed, and documented before delivery
  • Configurable to your curriculum or training scope

Three Audiences, One Station

Built for whoever needs to learn, test or demonstrate on real hardware.

▲

Education — Universities and TVET Colleges

Give students hands-on experience with the same Siemens hardware they'll encounter on the plant floor. PLC programming, HMI development, PROFINET configuration, distributed I/O, sensor integration, and conveyor control — all on one desk.

⚙

Corporate Training — In-House Technical Upskilling

Train your maintenance technicians and control engineers on real systems without taking production equipment offline. Fault-finding exercises, PLC programme uploads, HMI design, and network diagnostics in a safe training environment.

⊞

OEM Showcasing — Product Demonstration Platforms

Need to show your hardware in action? We built a station for Siemens Johannesburg to showcase their 21-inch touch panel and S7-1500 controller. Your product, our platform, their audience.

What's Inside

Every subsystem a trainee will encounter in the field, in one station. The design mirrors real plant architecture.

⊞

PLC & Power

Siemens S7-1200 or S7-1500 with integrated power supply. Powers on, PLC boots, and the pre-loaded programme initialises. Every station is tested and signed off against a 12-section QA checklist before it ships.

🖥

HMI — Touch Panel Interface

Configurable from the compact TP 170B up to a 21-inch widescreen, depending on the training scope. Pre-loaded with an I/O toggle programme so every digital input and output can be exercised from the panel on day one.

⚡

Digital I/O — Signal Modules with LED Indication

Two 8-channel digital output modules (16 DO total) with individual LED indicators. Two 8-channel digital input modules (16 DI total). Every channel is wired, labelled, and verified during commissioning.

~

Analogue — Potentiometers and Analogue Channels

Physical potentiometers wired to dedicated analogue input channels. Students can adjust a real signal and watch the PLC read it — not a software slider on a screen.

▣

Distributed I/O — ET 200 over PROFINET

A Siemens ET 200 module connected to the PLC over PROFINET, breakout via a DB29 connector to the conveyor belt. Teaches real distributed I/O architecture: network configuration, hardware detection, remote signal routing.

→

Conveyor — Bi-Directional Belt System

A physical conveyor that jogs forward and reverse, controlled from the PLC or HMI via the ET 200. Four front-panel push buttons, four pilot lights, three inductive proximity sensors and a light barrier — all wired through the distributed I/O.

◉

Networking — PROFINET, Ethernet and Wireless

Internal PROFINET between PLC and ET 200. External Ethernet jack for laptop programming access. Wireless dongle with labelled network credentials for untethered access.

≡

Labelling & Documentation

Every input, output, connector, power button and network port is labelled. Each station is numbered. Wireless credentials are printed and attached. The 12-section QA sign-off document ships with the station.

Typical Station Specification

PLC Siemens S7-1200 or S7-1500
HMI Touch panel — TP 170B through to 21" widescreen
Digital I/O SM signal modules — 16 DI / 16 DO with LED indication
Distributed I/O ET 200 via PROFINET, DB29 breakout
Conveyor Bi-directional with 4 buttons, 4 pilot lights
Sensors 3x inductive proximity, 1x light barrier
Analogue Potentiometers on dedicated analogue channels
Network PROFINET, external Ethernet jack, wireless
Software Siemens TIA Portal — pre-loaded I/O toggle programme
QA Full 12-section commissioning sign-off per station

Featured Build — Siemens Johannesburg

Built for Siemens to Showcase Their Own Hardware

When Siemens Johannesburg needed a demonstration platform for their 21-inch touch panel and S7-1500 controller, they came to SyncHub Automation.

The station featured a 21-inch widescreen touch panel, an S7-1500 controller, and a live process with real I/O — giving Siemens' sales and technical teams a working platform to present from.

If the OEM trusts us to showcase their own product, the training station you put in front of your students is in good hands.

Station Gallery

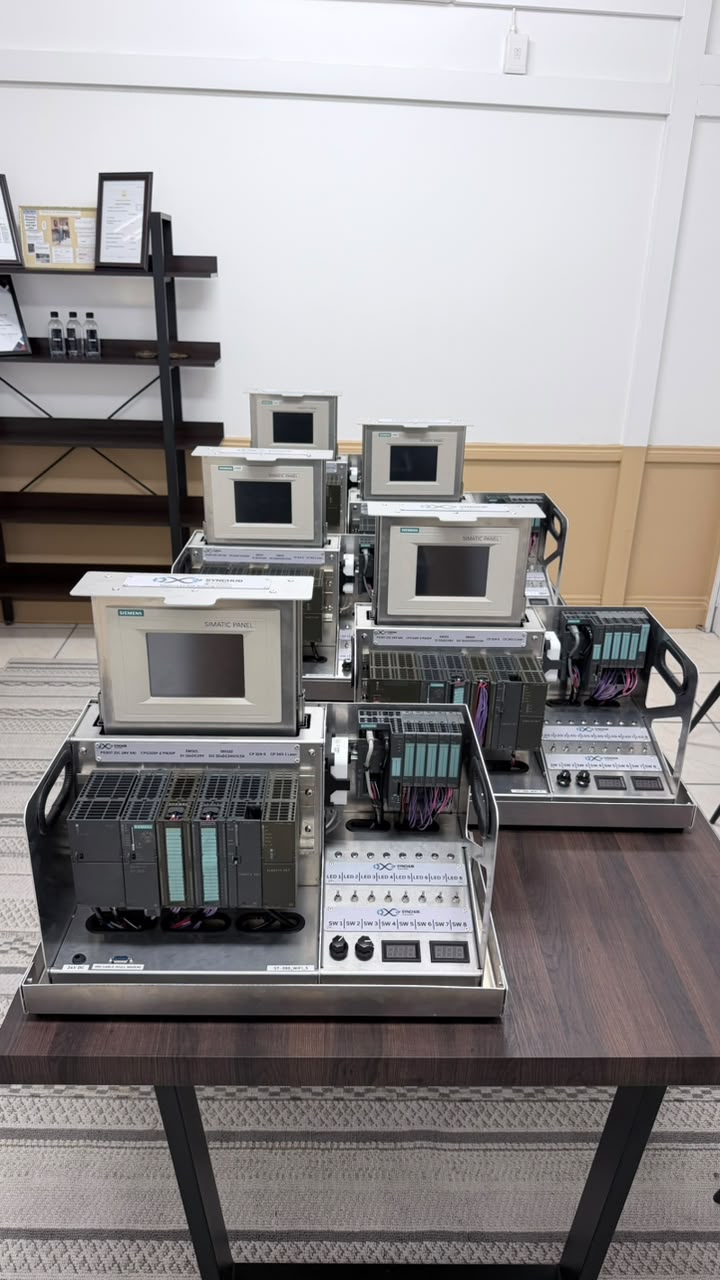

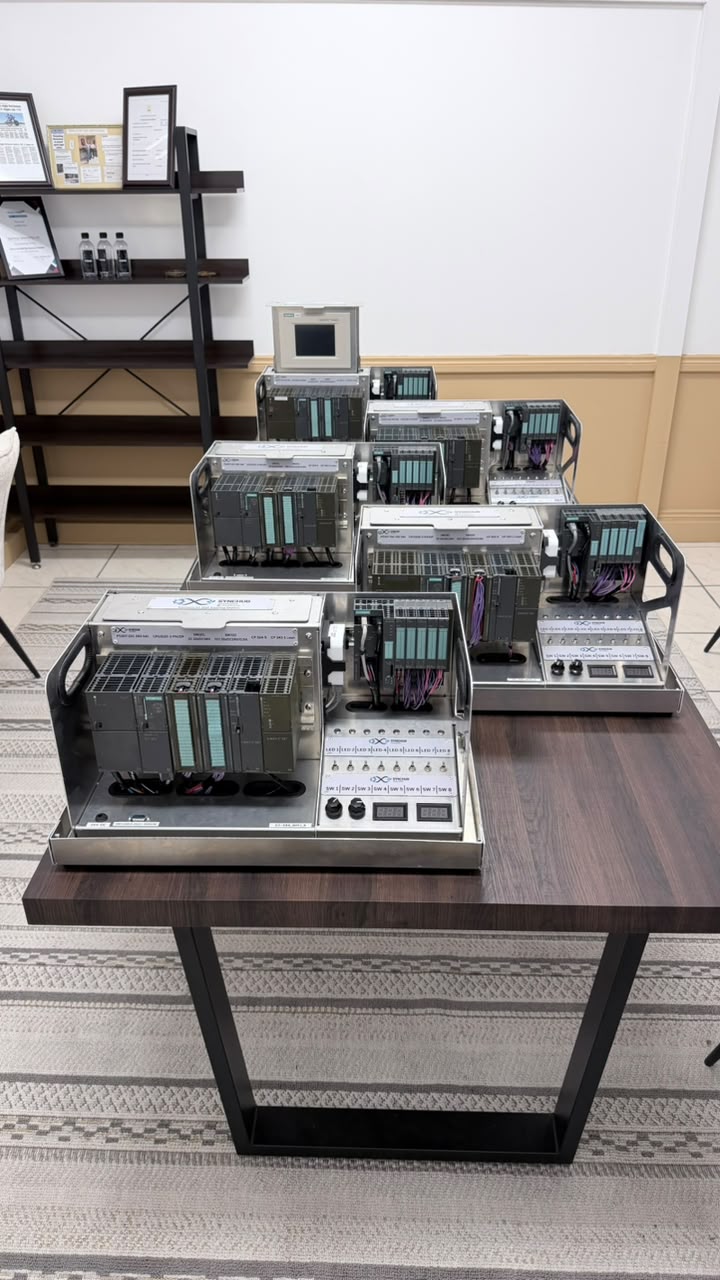

Training Station

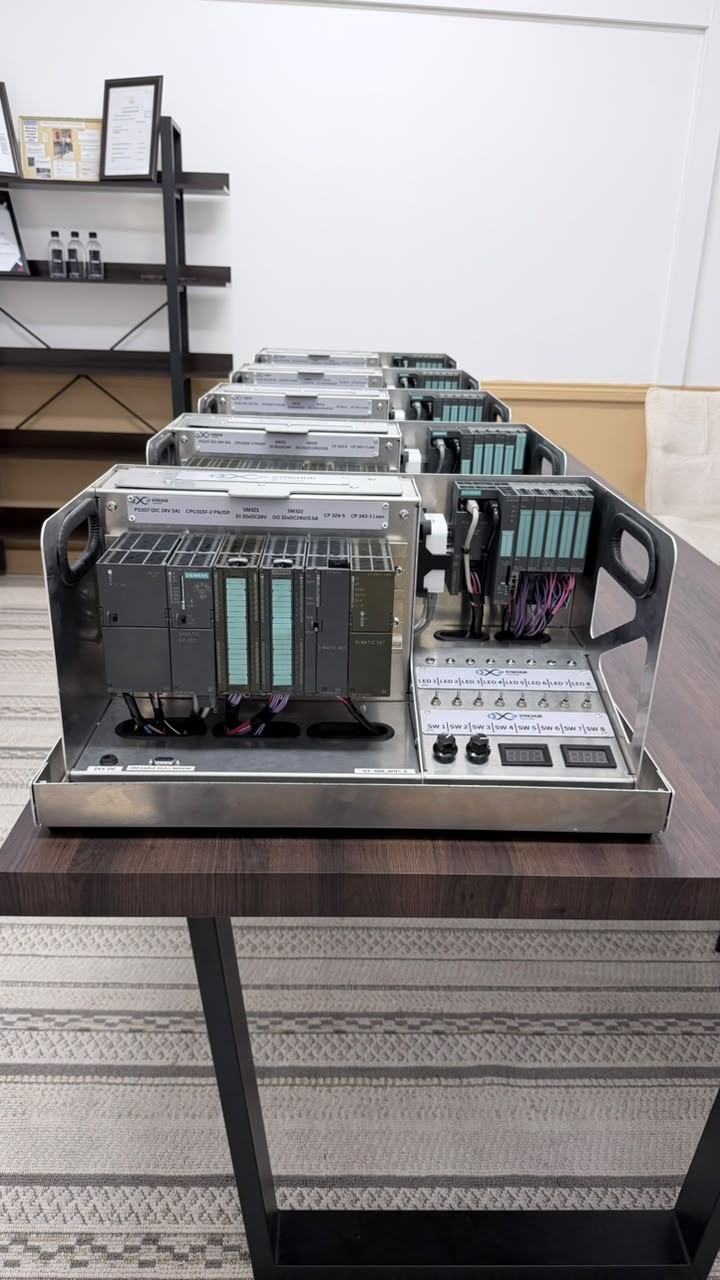

Training Station
Training Station
Training Station
Training Station
Training Station

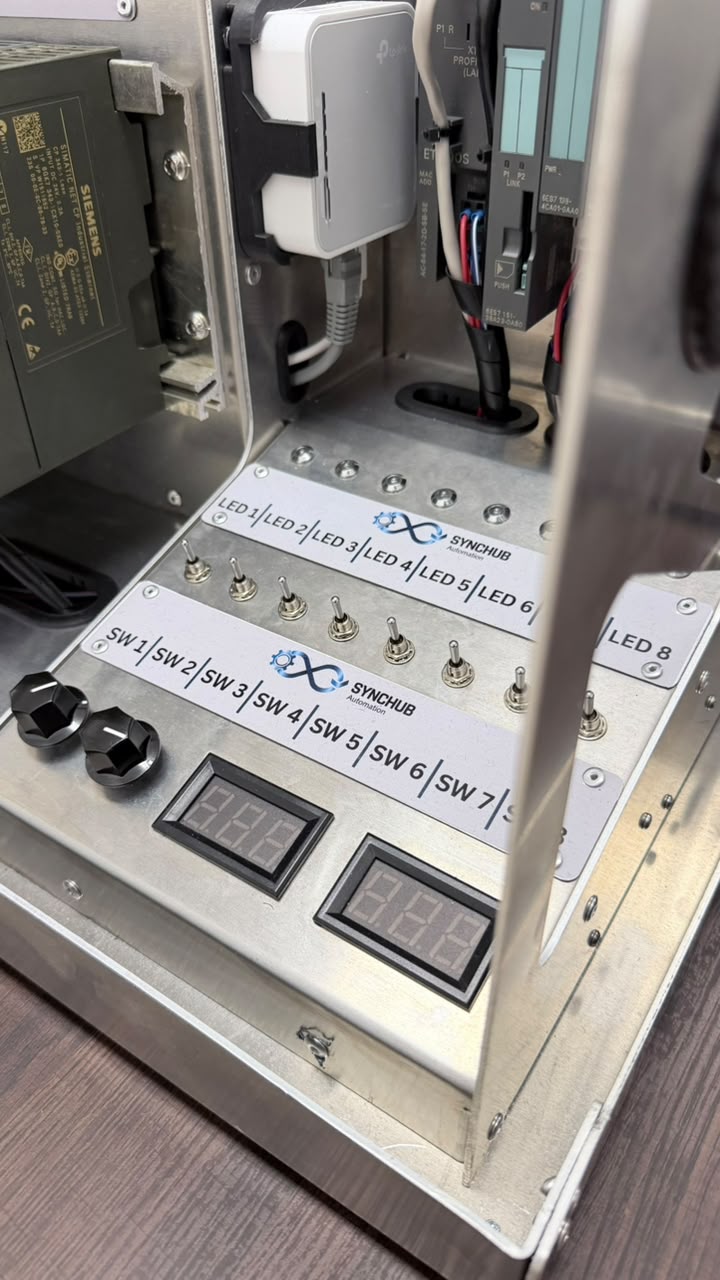

Training Station
Training Station
Training Station
Training Station
Training Station
Training Station
Training Station
Training Station

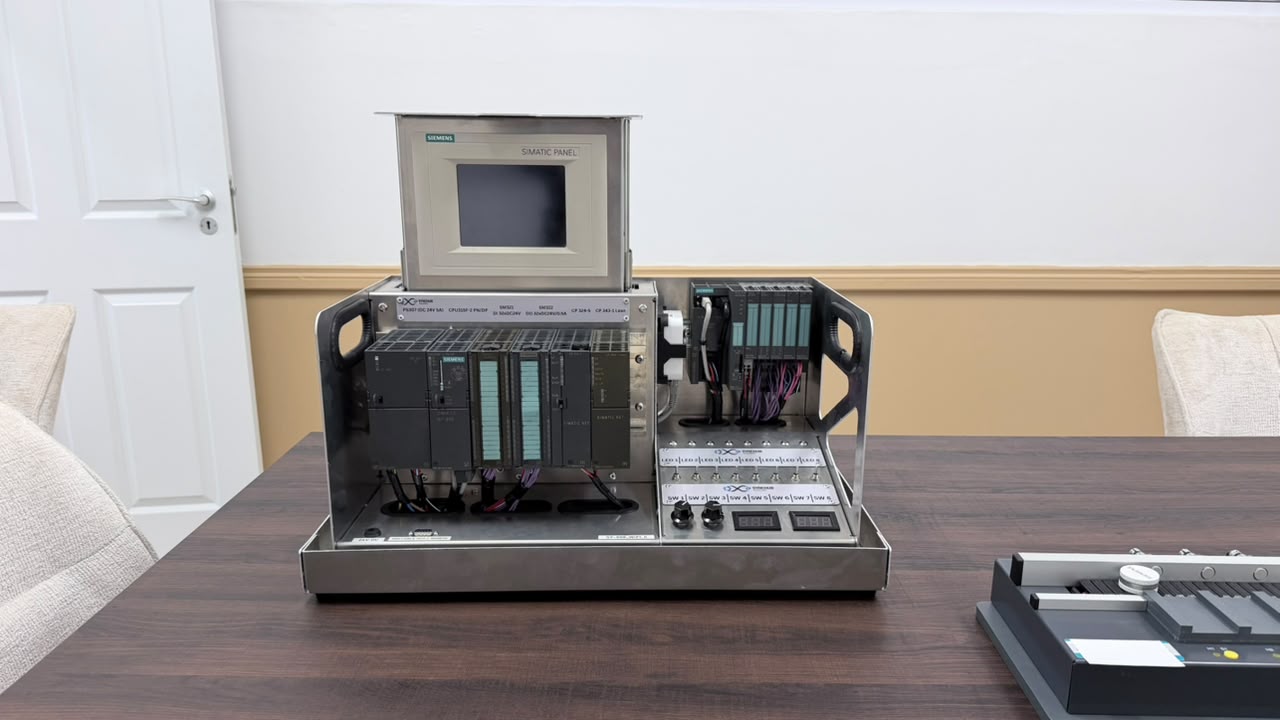

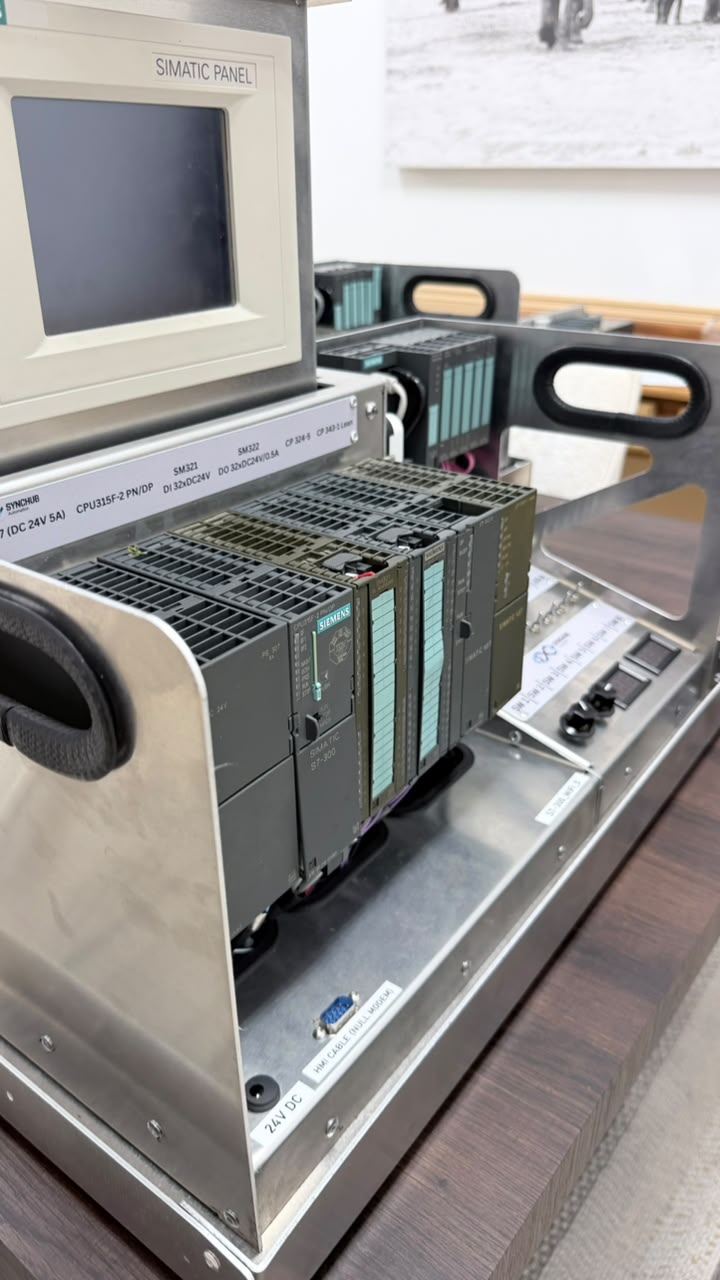

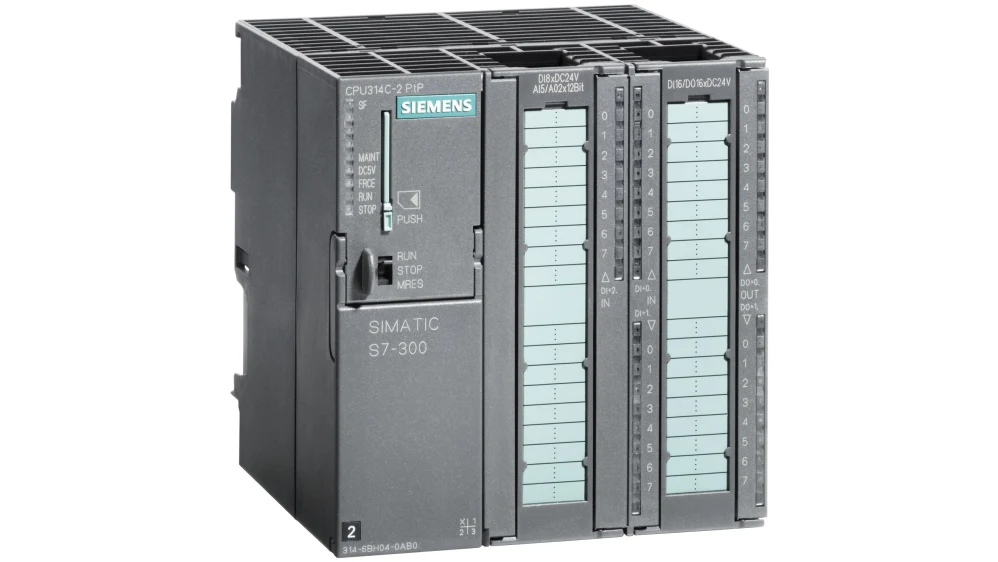

S7-300 Training Station
S7-300 Training Station
Aluminium Enclosure Station
Aluminium Enclosure Build

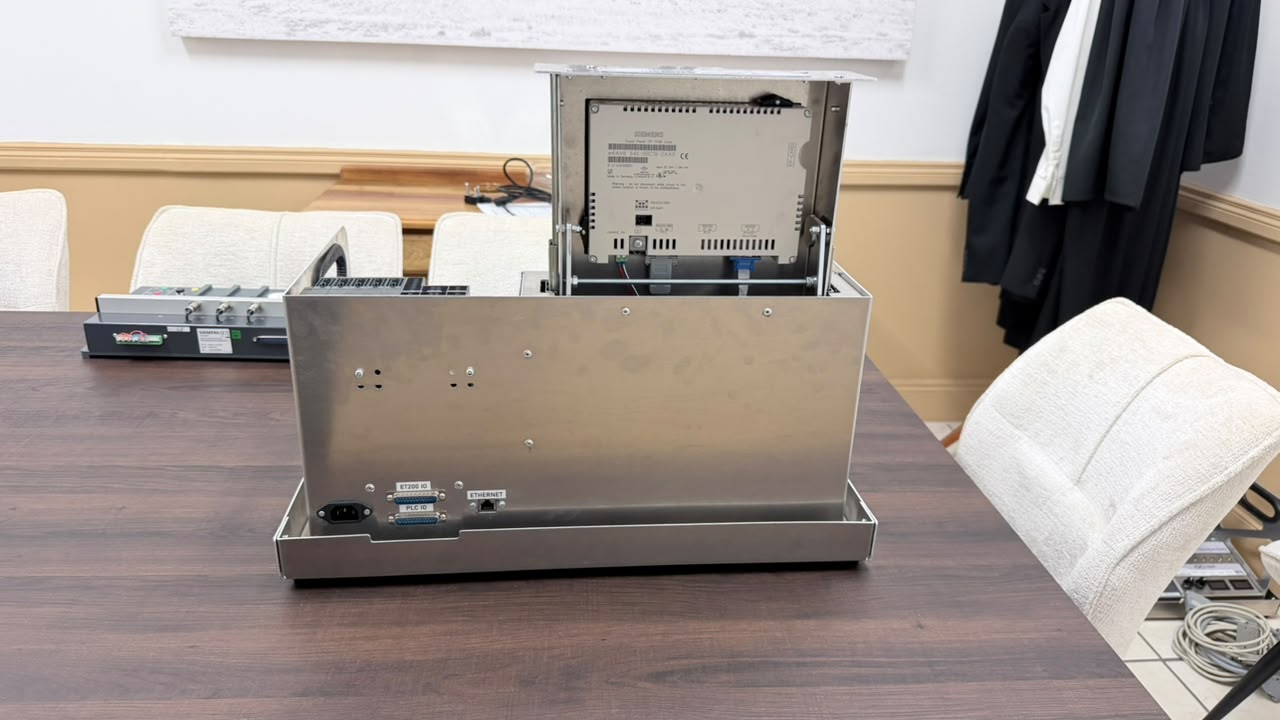

Retractable HMI
Retractable HMI Configuration

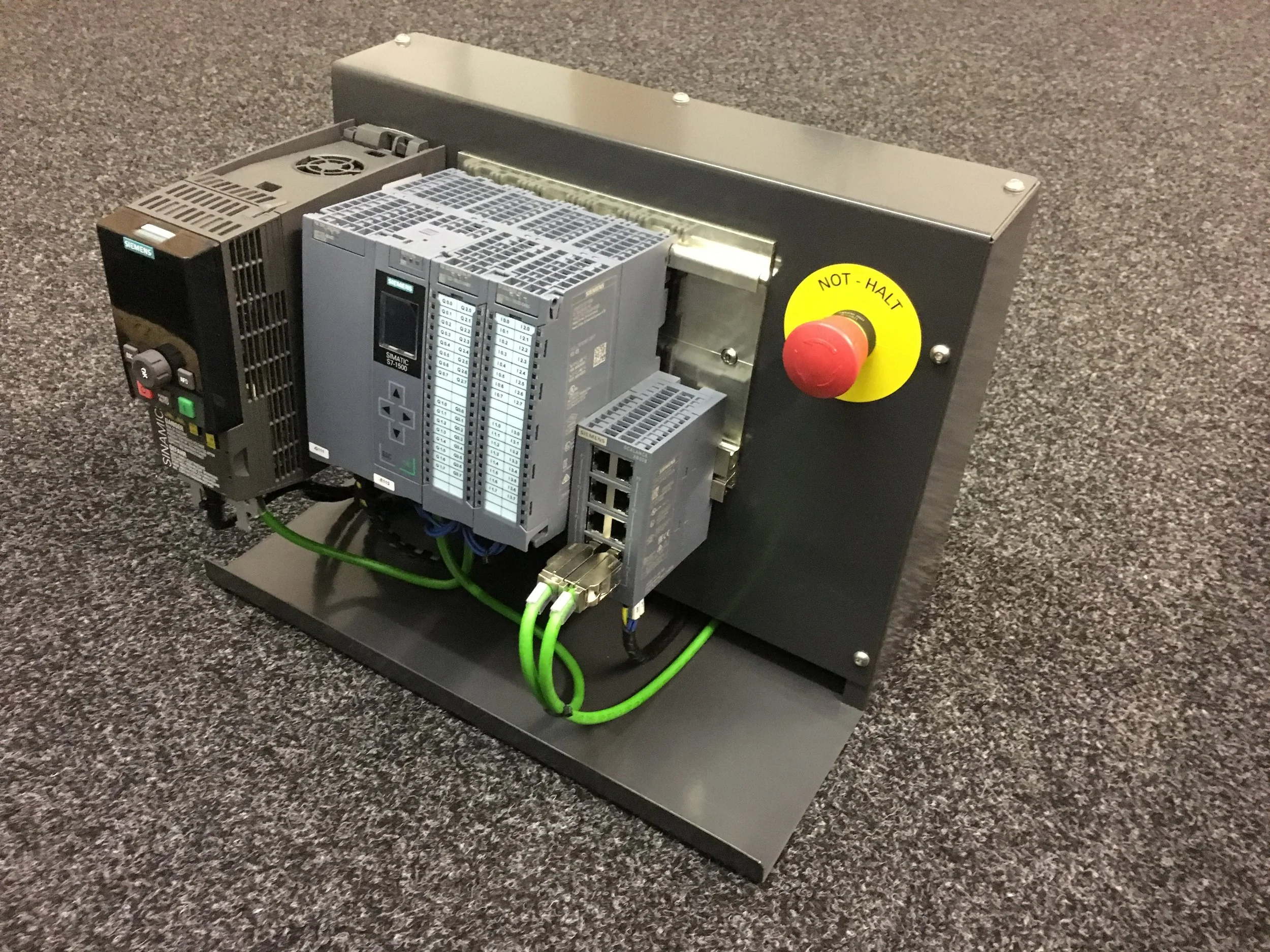

Siemens S7-1500
Siemens S7-1500 Setup
S7-1500 Training Station with HMI

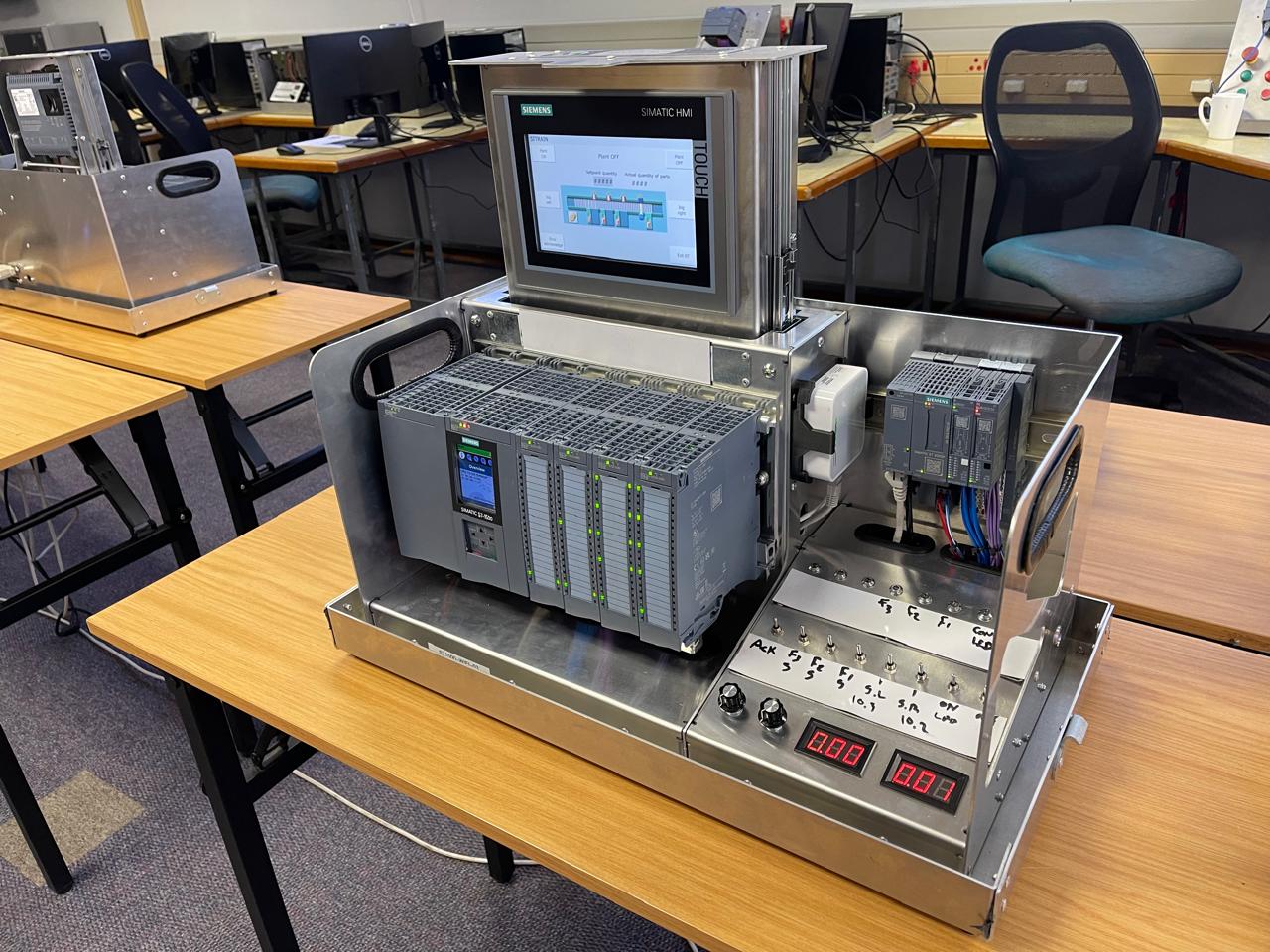

S7-1500 Station with Simatic HMI
S7-1500 Station Front View

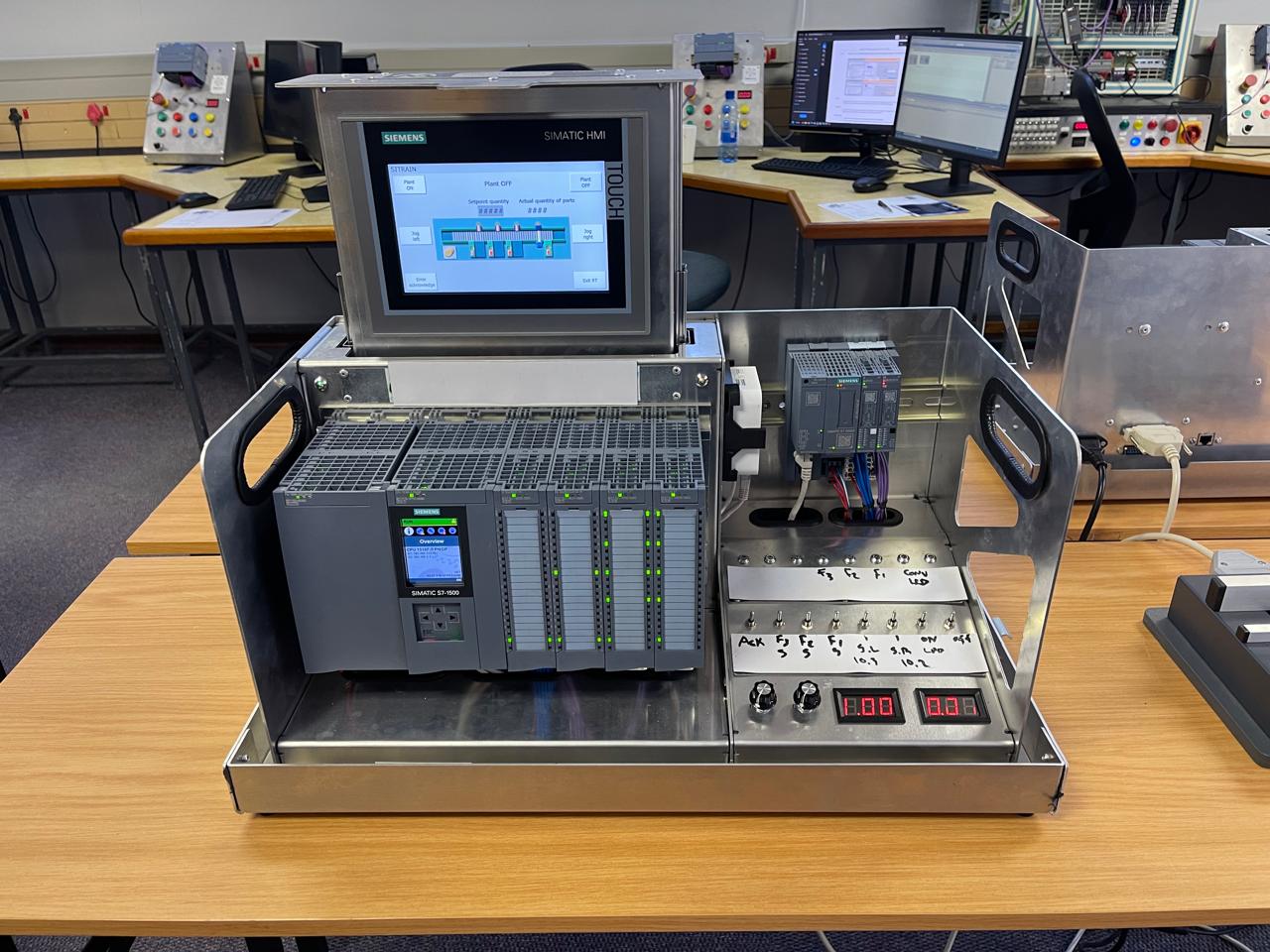

S7-1500 Station — Front View
